Fisheye IP Camera Wi-Fi 360 Degree Panoramic Security Surveillance CCTV

100% of buyers enjoyed this product! 9 orders
1000
Quantity:
Color:White
View cart→

Fisheye IP Camera Wi-Fi 360 Degree Panoramic Security Surveillance CCTV

Description:

  • AR0330+FH8830 (H.264)
  • Support Hikvision Private Protocol, ivms-4200.

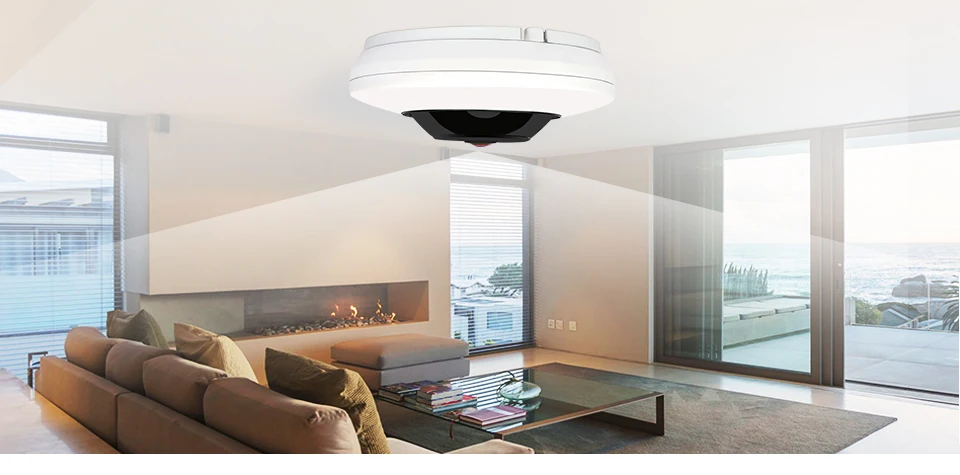

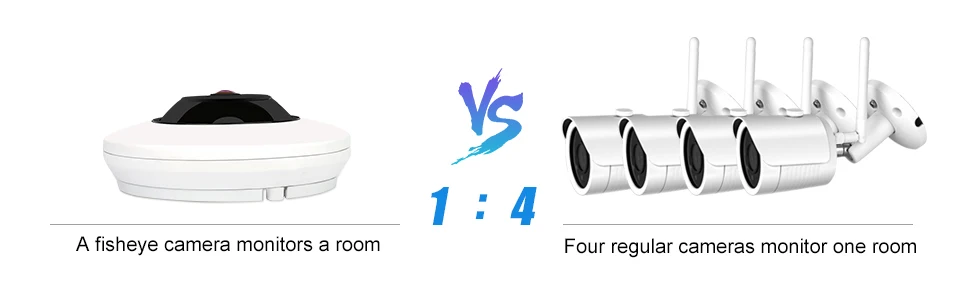

  • Viewing range of 180 or 360 degrees
  • 1/3″ Aptina HD CMOS Sensor, Fullhan FH8330, Low Stream, WDR, 3D NR; With IR-CUT
  • Main Stream: 1520 × 1520@25fps,5MP HD Board Lens
  • With Internal POE, with SD Card Slot (Max.64GB)
  • With Wi-Fi (Max.300m),2-Way Audio, Alarm I/O, Support CVBS
  • IR LED: 42µ x 3PCS, IR range: 20M, Board Lens 1.05mm, Size: 120 x 49(H) mm, Weight: 500g
  • With Screen Capture command
  • Motion Detection Alarm (range18 * 22) FTP (FPEG&AVI, SMTP, JPEG&MESSAGE&AVI;
  • Timing: Manually, PC synchronization, network synchronization (nist\windows\nw.nist\a.nist\b.nist);
  • Privacy zone block (8 * 8), 3 groups can be supported;
  • Brightness \ Contrast \ saturation \ Sharpness adjustment \ White Balance: Auto & Manual \ 3D NR (adjustment range 1-255);
  • BLC (off by default), ISO mode (normal \ Enhanced – default), WDR (off by default), AE (automatic default, manually adjustment range 1-255
  • Electronic Shutter (off by default, manually adjustment range1/25 – 1/10000s);
  • PAL\NTSC optional and default as PAL;
  • Support DDNS and DDNS types as Oray, NO-IP, DYN DDNS;
  • Safe: Password is required when connect third-party software or device (such as a type of VLC player RTSP);
  • Support audio which need add mic, off by default;
  • User Management (add, delete, configurate competence), 10 group at most;
  • DHCP (default as off), support unified Port for HTTP\RTSP\ONVIF(default as 80);
  • P2P(FREEIP), support login ways as SN\IOS APP\Android APP\QR code scanning, and support connection status display;
  • Main stream (1520×1520@25fps) &sub-stream as D1-720*480, Stream adjustment Frame rate, bit rate, VBR \ CBR variable bit rate, frame interval), OSD menu (time + text, 2 lines);
  • Support OCX manual recording, manual shots, power outages memory support, built-in & external reset button.



Package Includes:

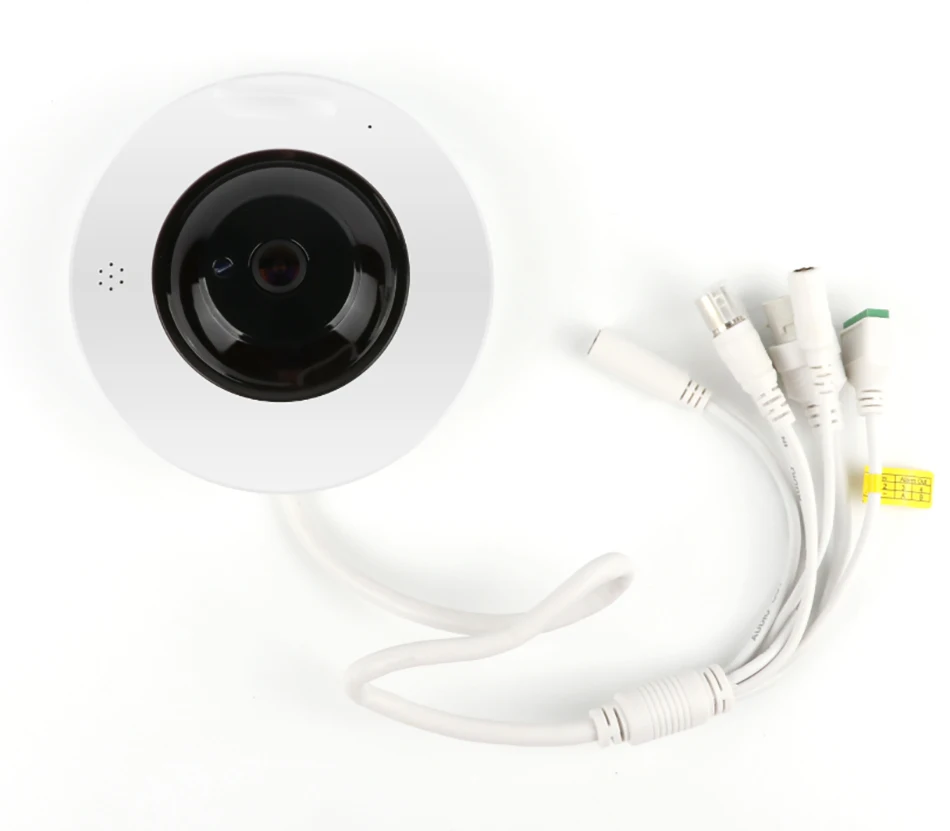

1x Fisheye IP camera

1x Screws bag

1x Quick Operation Guide



Two-Way Audio, Hear &Talk Back via your computer
Hear what’s going on inside/outside your home and talk back just with a touch! Receive sound and conversation on your computer.Do not miss the details you want to know.

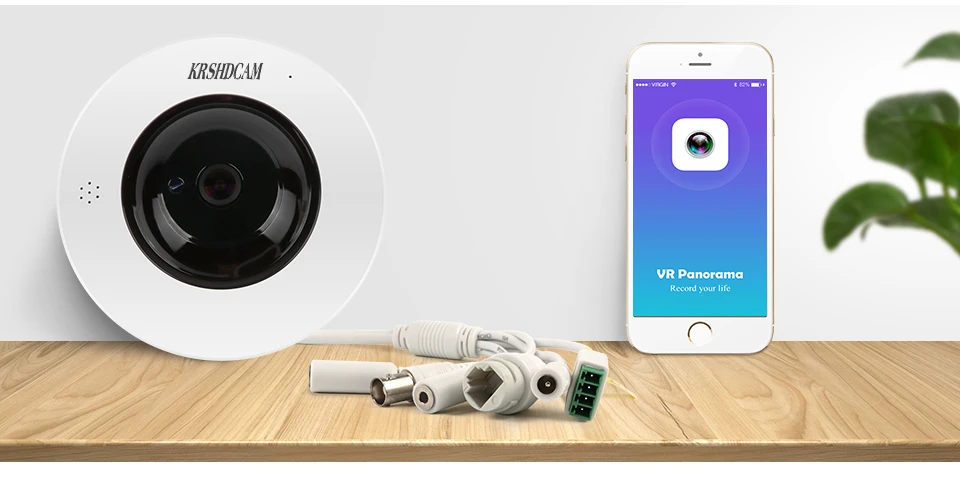

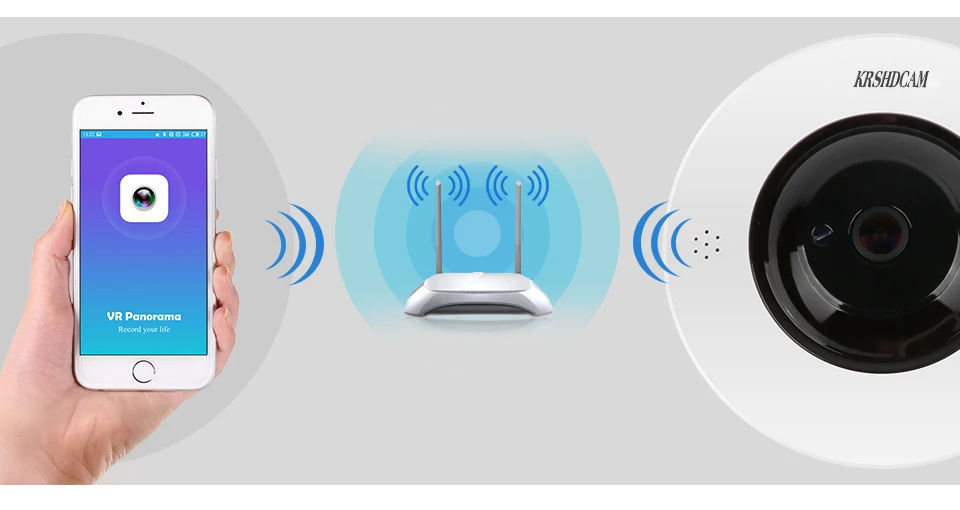

VR Panorama APP
VR1080P fisheye uses VR Panorama APP that allows viewing of every corner of the room from different perspectives.
With P2P enabled, mobile phone can be viewed anytime, anywhere.
2.4G WiFi Stronger Network Signals
KRSHDCAM wireless cameras no obstacles 300m Max.(No other wifi interference, no obstructions.)
With strong penetration and anti-interface ability,the system is guaranteed to provide you smooth videos.
You will never worry about network off-line. (If there is a wall barrier. Transmission signal can only reach 30 meters)
Motion detecting
When the object moves within the scope of monitoring, will push alarm message to your mobile phone, through the phone APP features can be a key to open or close the detection function
Built-in POE network power supply
Built-in POE, connect POE switch or POE VCR, connect the network route can also provide power for the camera
SPECIFICATION
Model NO. VA-MDEF300
Camera

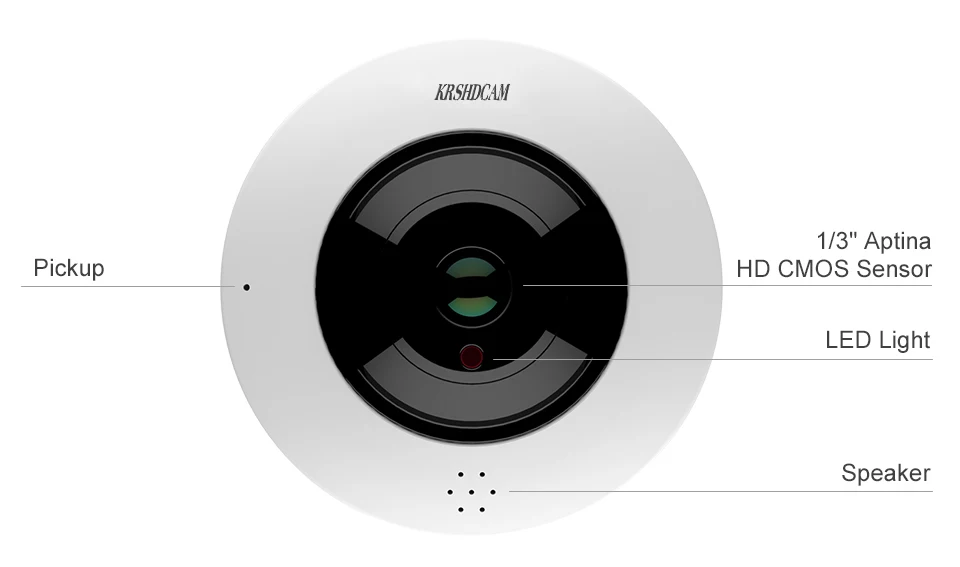

Image Sensor 1/3″ Aptina HD CMOS Sensor
Resolution 2MP
Effective Pixels 2304(H) x 1536(V)
Compression H.264
TV System PAL/NTSC
Electronic Shutter Time Auto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec
S/N Ratio ≥52dB
Scanning System Progressive
Video Output Network, cvbs

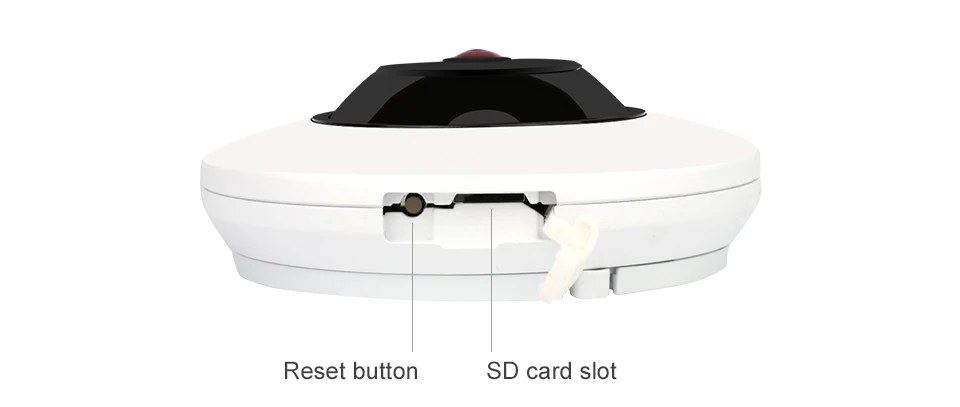

Reset Button YES
LENS Type
Focus Length Board Lens 1.05mm
Focus Control Fixed
Lens Type Fixed
Pixels 5MP
Night Vision
Infrared LED 42µx 3PCS
Infrared Distance 20M
IR Status Under 10 Lux By CDS
IR Power On CDS Auto Control
Network
Ethernet RJ-45 (10/100Base-T)
Protocol TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP
ONVIF Support ONVIF 2.4
P2P YES, Support QR Code
POE Internal POE, Support IEEE 802.3af
Video Delay 0.3S (Within the Lan)
Main Stream 1 1520*1520@25fps
Main Stream 2 1024*1024@25fps
Main Stream 3 /
Sub Stream 1 720*720@25fps
Sub Stream 2 /
Sub Stream 3 /
Tri Stream 512*512@25fps

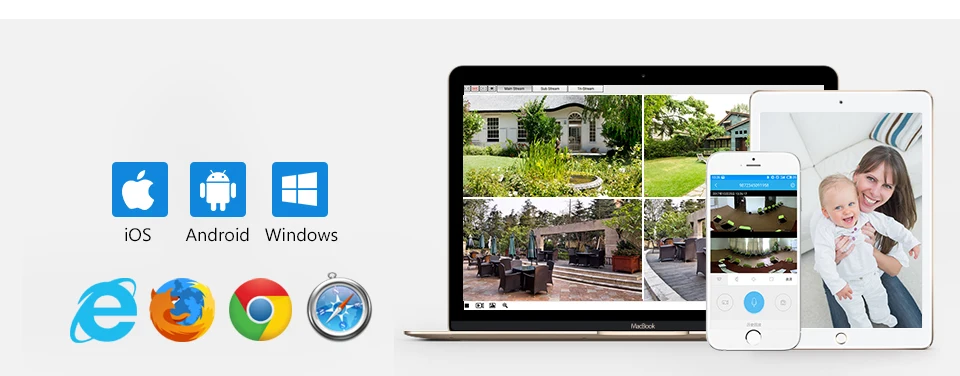

IE Brower IE8-11, Google Chrome, Firefox, Safari, Mac Safari
Smart Phone iPhone, iPad, Android, Android Pad
Wireless
Antena 3dbi
Hotspot YES
Wi-Fi Wi-Fi(IEEE802.11b/g/n)
WIFI Range No obstacles 300m Max.
Camera Features
Day/Night Color/ B&W (IR-CUT )
Image Config Saturation/Brightness/Contrast /Sharpness, Mirror, White Balance, FLK(Flicker Control)
Corridor Pattern /
ROI /
Defog Mode /
BLC /
HDR /
WDR /
Motion Detection Support
Privacy Masking 3 Rectangular Zone
Recording Mode NVR/NAS/VMS/Web
Language Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Farsi, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian,Nederlands, Czech

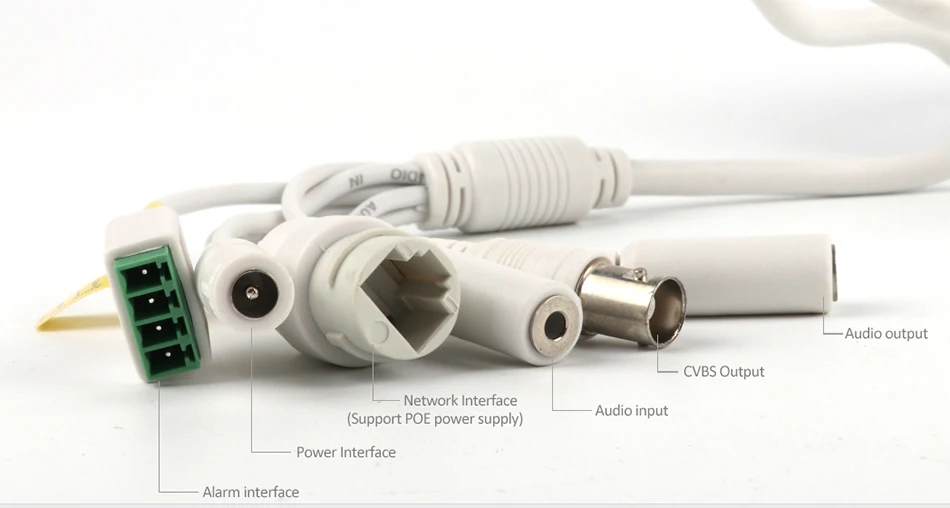

Interface
Audio 2-way audio(3.5mm audio interface)
Alarm 1channel Input/Ouput

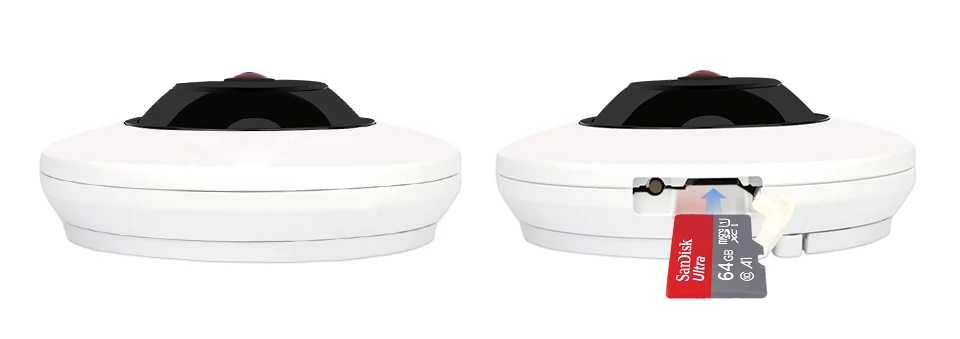

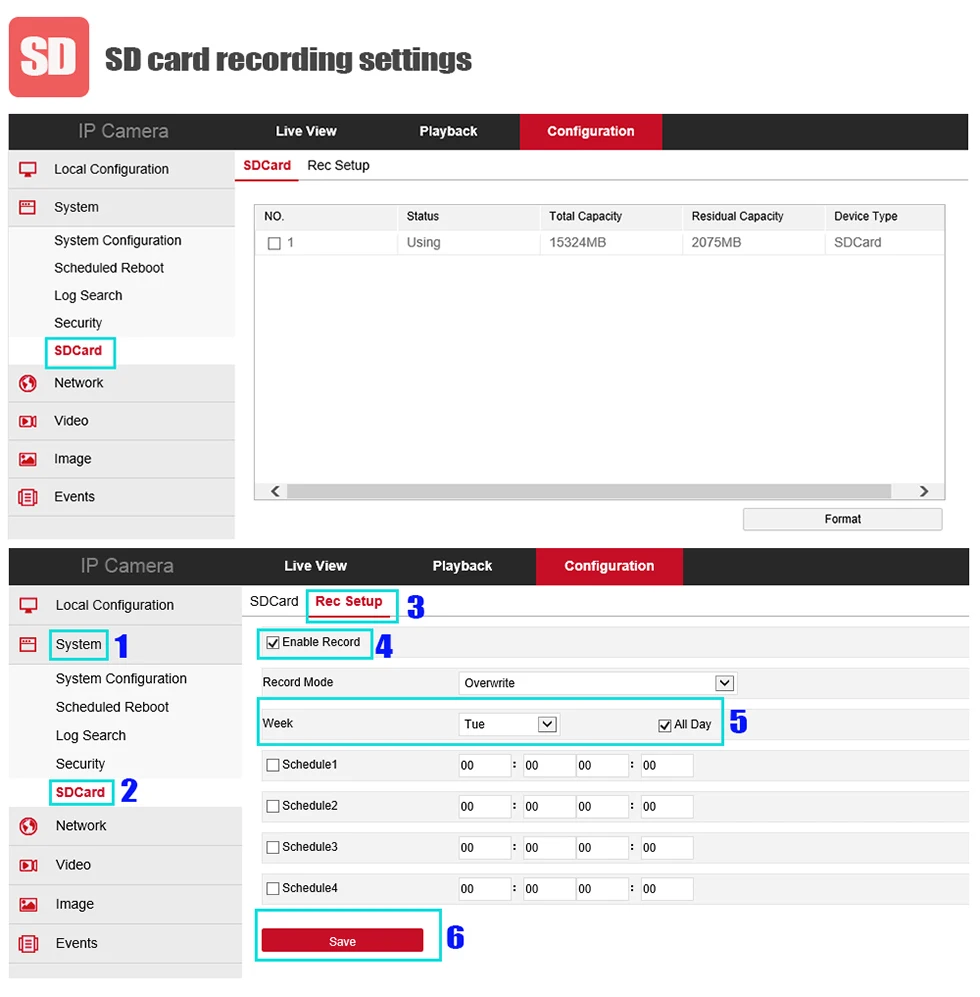

SD Card Slot support 64G Micro SD
RS485 /
General
Housing Body:Metal, Bracket: Plastic
Anti-cut Bracket NO
IR Cut Filter YES
Operation Temperature -20℃ ~ +60℃ RH95% Max
Storage Temperature -20℃ ~ +60℃ RH95% Max
Power Source DC12V±10%, 950mA

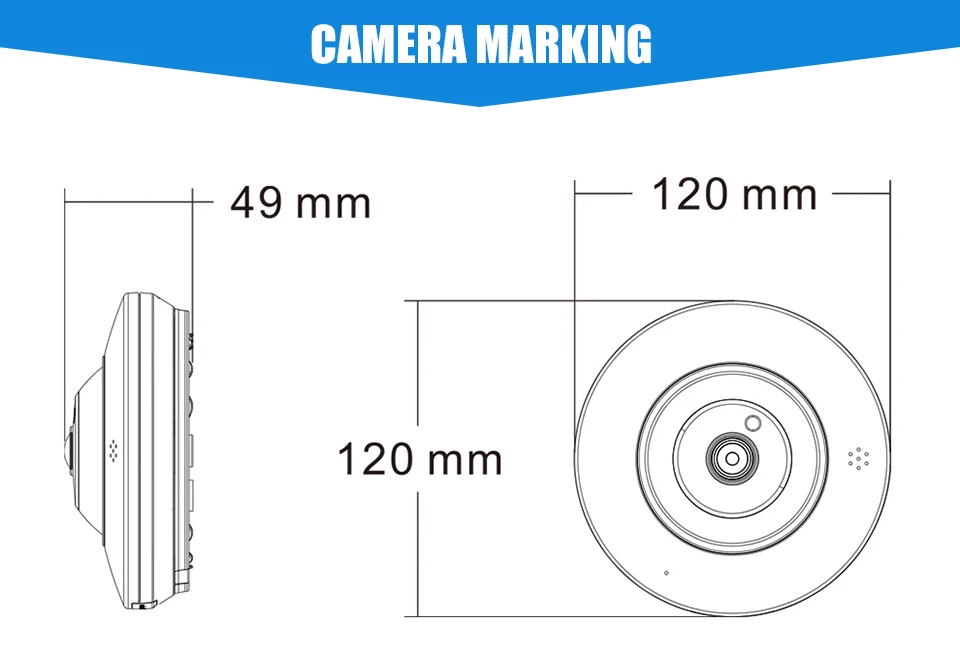

Dimension ¢120 x 49(H) mm
Weight 500g
